Characteristics

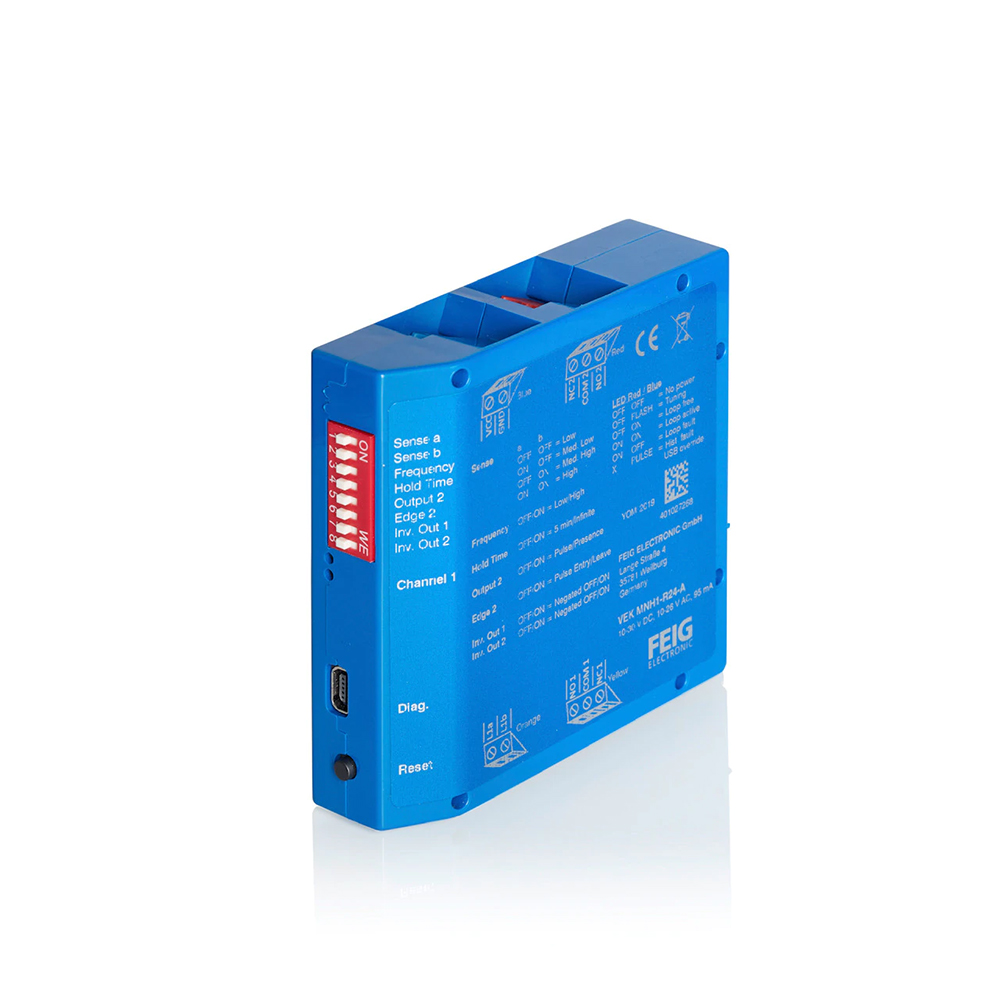

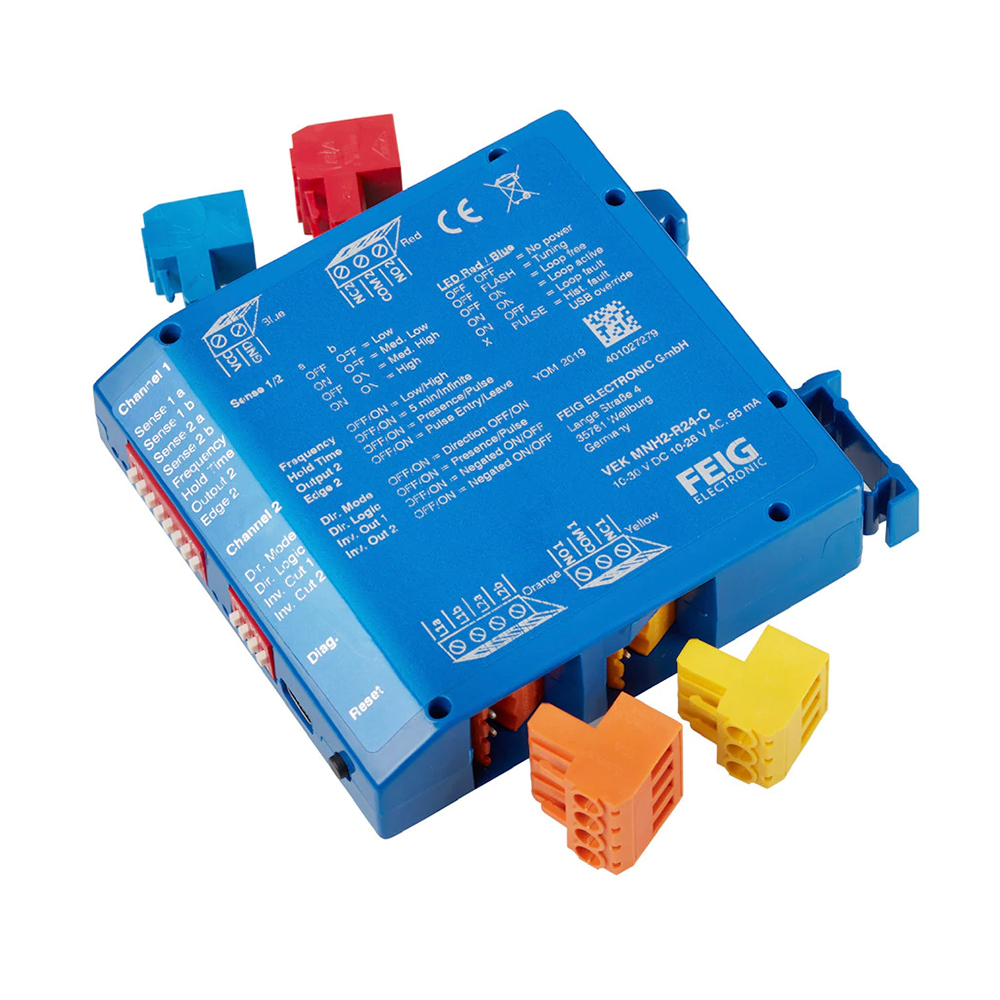

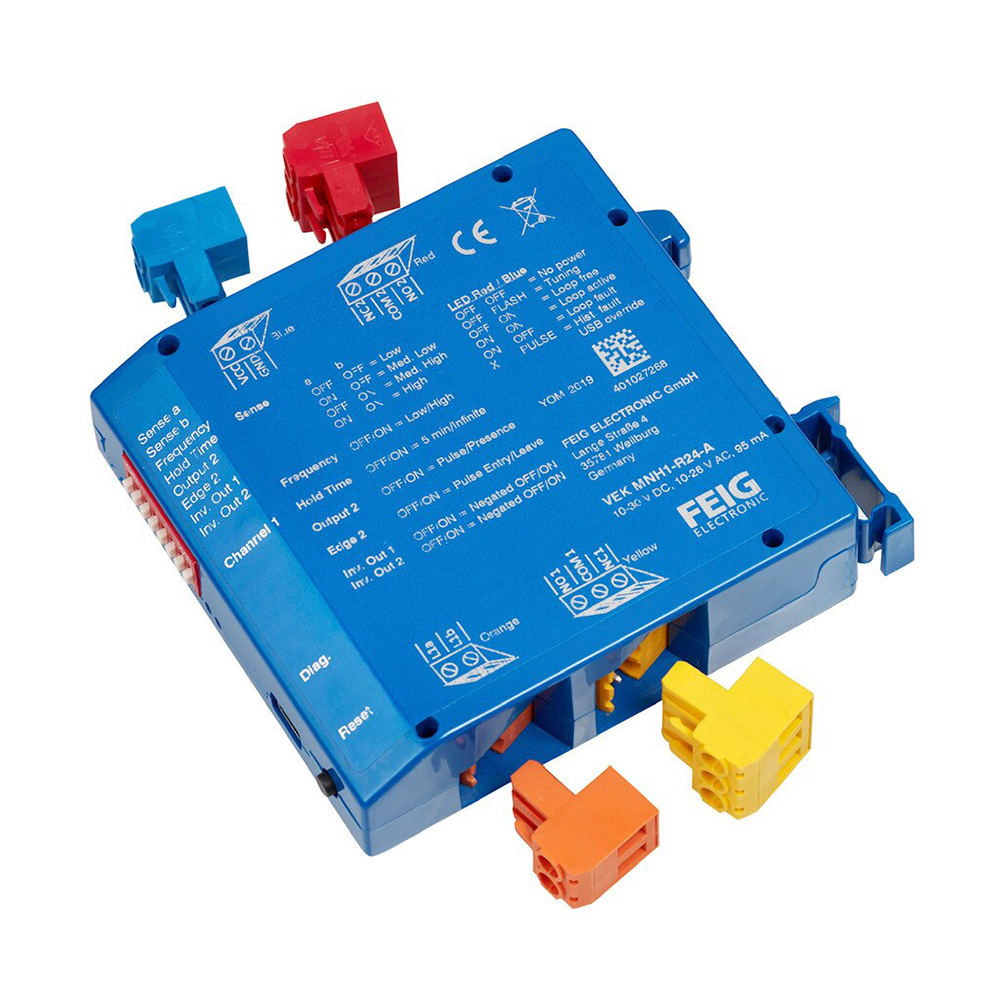

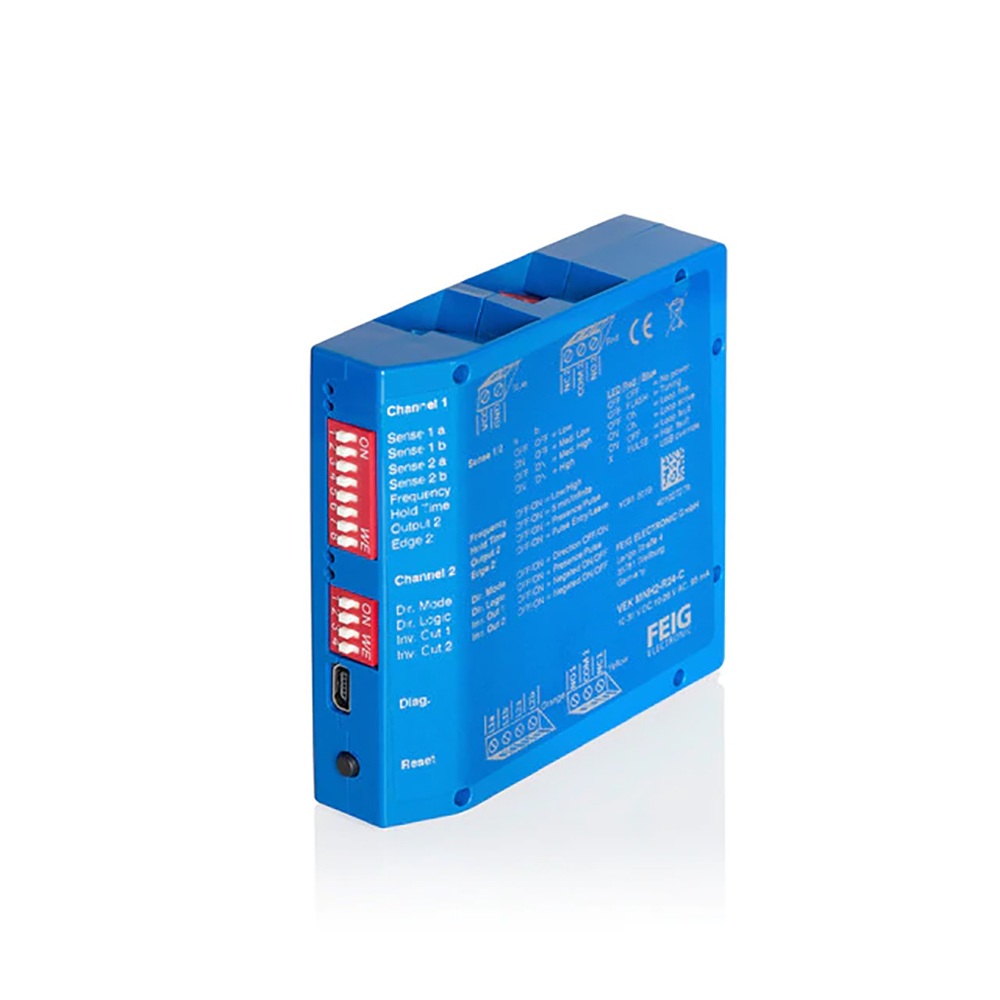

VEK MNH2 dual channel vehicle loop detector for vehicle detection with two relay outputs.

The VEK MNH2 is a C-Rail mountable vehicle loop detector.

The detectors come in a small form factor that fits in all spaces and mounts on a standard 35 Din Rail.

Variations

VEK MNH2-A Induction vehicle loop detector (2-channel)

Special Characteristics:

Plastic housing with compact size to be mounted directly on DIN – or C-rail
Direct cabling, no plug socket
Microprocessor controlled
Isolation transformer between loop and detector electronics
Automatic Calibration when switching on or when changing the adjustment of holding time
Adjustment of unlimited holding time possible
Indication with LED`s
All adjustments with DIP – switch on front panel
Adjustments of relay functionality
10-30 VDC or 10-26 V AC

Features:

Isolation transformer between loop and detector electronics
Automatic calibration when switching on or changing the adjustment of holding time
Plastic housing with compact size to be mounted directly on DIN-rail (wiring on the housing)
Adjustment of unlimited holding time possible
All adjustments with DIP-switch on front panel
Permanent or pulse output adjustable
hardware platform for higher detection speed and flexibility

Warranty:

1 Year from time at shipment. Limited Warranty. Please ask for our warranty Statement

Same as FAAC FG1-U Vehicle Loop Detector - FAAC 2680

Other

Same model as VEK MNH2

Replaces

VEK-M2H and MID2E-800

Download Info Sheet VEK-M1H MID1E-800
