Pillars and Housing


Pillars and Housing

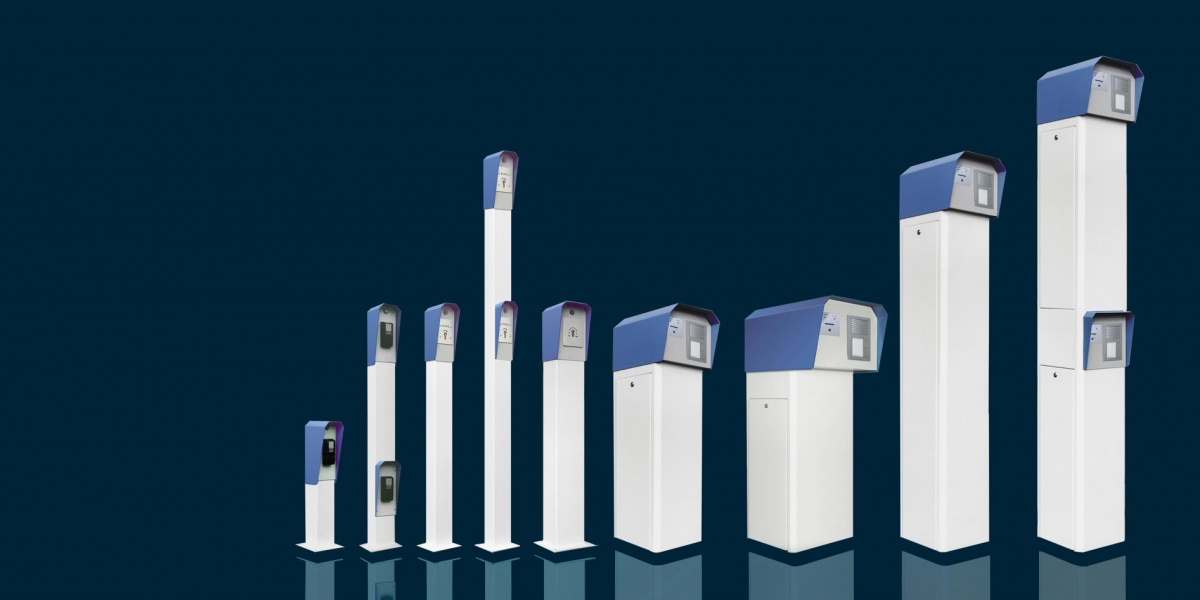

ELKA aluminium pillars and housings are made for a variety of access control devices. The pillars are suitable for e.g. photoelectric barriers and key switches and the housings are suitable for e.g. card readers and intercom systems. The removable, lockable front panels (pillars), lockable lateral access panels and hinged hoods (housings) ensure an easy installation and comfortable operation. Depending on their height, they can be operated from a car, truck or bus.

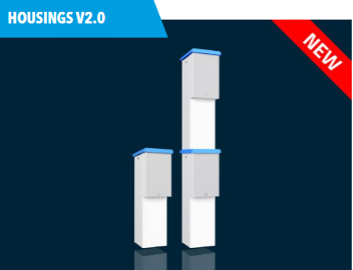

HOUSINGS MADE OF ALUMINIUM

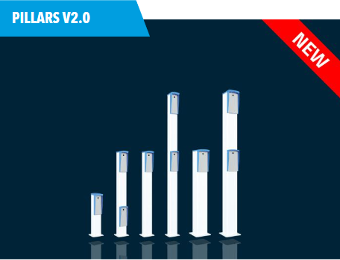

PILLARS MADE OF ALUMINIUM

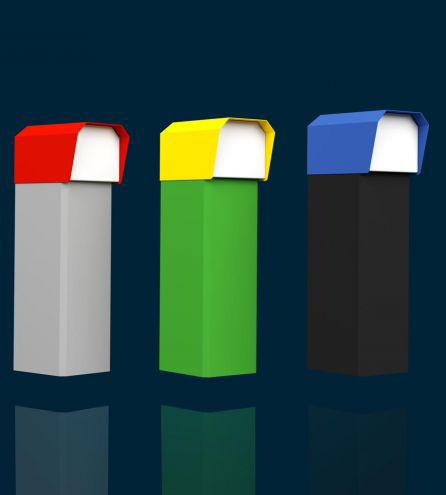

VARIABLE


Technical Data

TYPE SIZE W/D/H ASSEMBLY DIMENSIONS W/D/H WEIGHT INSTALLING THROUGH

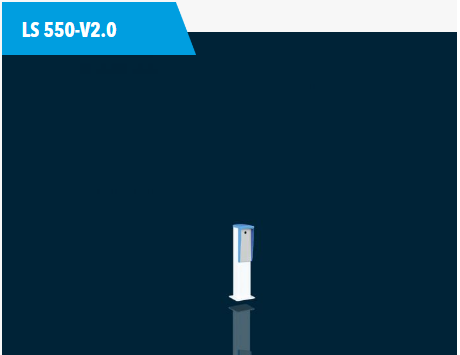

LS 550 100mm x 80mm x 550mm 80mm x 75mm x 160mm 2.5kg removable, lockable front panel

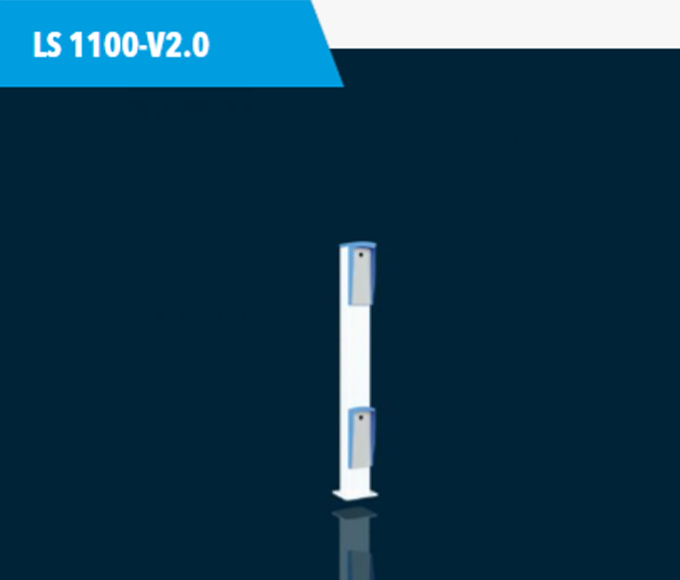

LS 1100 100mm x 80mm x 1,100mm 80mm x 75mm x 160mm 4.7kg removable, lockable front panel

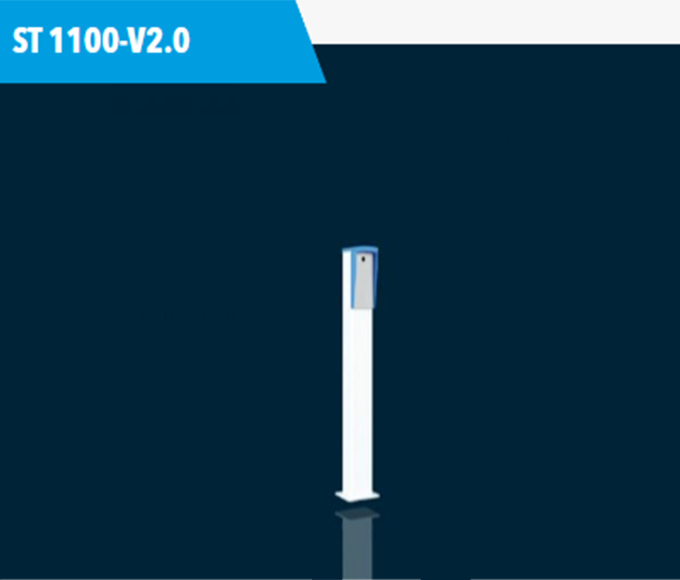

ST 1100 100mm x 80mm x 550mm 80mm x 75mm x 160mm 2.5kg removable, lockable front panel

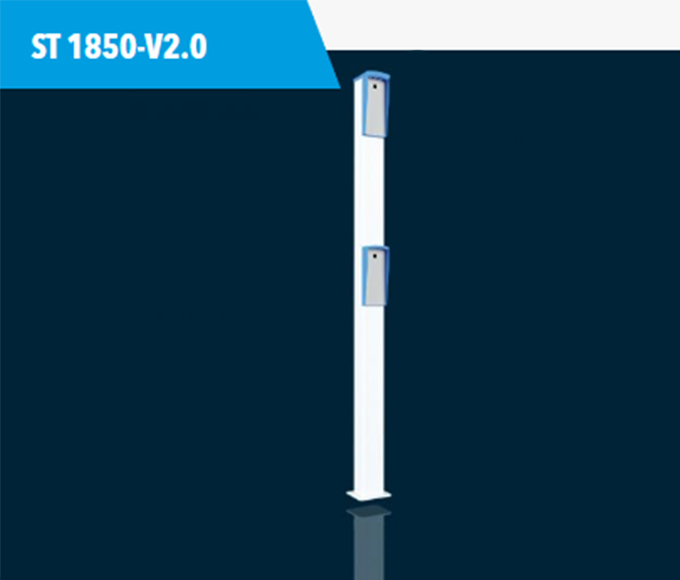

ST 1850 100mm x 80mm x 1,850mm 80mm x 75mm x 160mm top 70mm x 75mm x 160mm bottom 7.0kg removable, lockable front panel

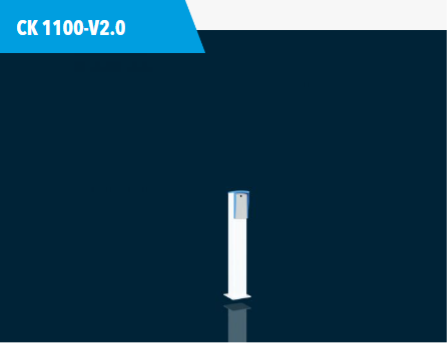

CK 1100 145mm x 145mm x 1,100mm 130mm x 125mm x 160mm 7.0kg removable, lockable front panel
PKW 1100 300mm x 350mm x 1,100mm 250mm x 330mm x 195mm 20.0kg lockable lateral access panel, hinged hood

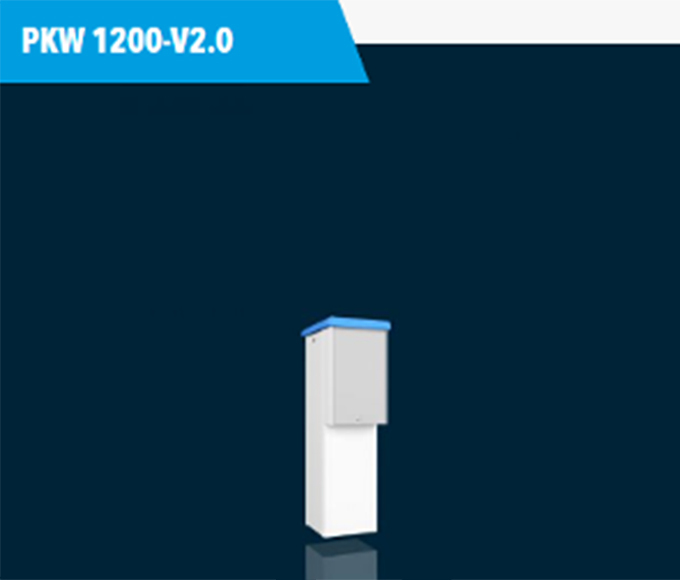

PKW 1220 450mm x 400mm x 1,220mm 400mm x 490mm x 265mm 28.5kg lockable lateral access panel, hinged hood
BUS 1850 300mm x 350mm x 1,850mm 250mm x 330mm x 195mm 28.0kg lockable lateral access panel, hinged hood

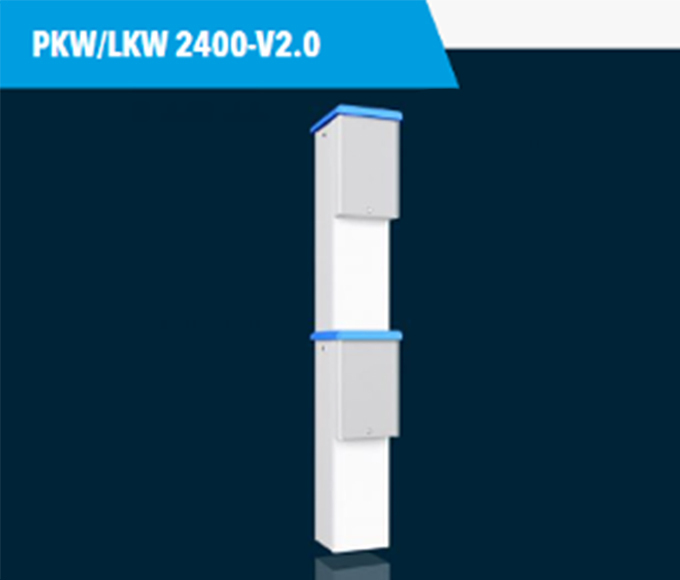

PKW / LKW 2250 300mm x 350mm x 2,250mm 250mm x 330mm x 195mm top 220mm x 340mm x 200mm bottom 30.5kg lockable lateral access panel, hinged hood
